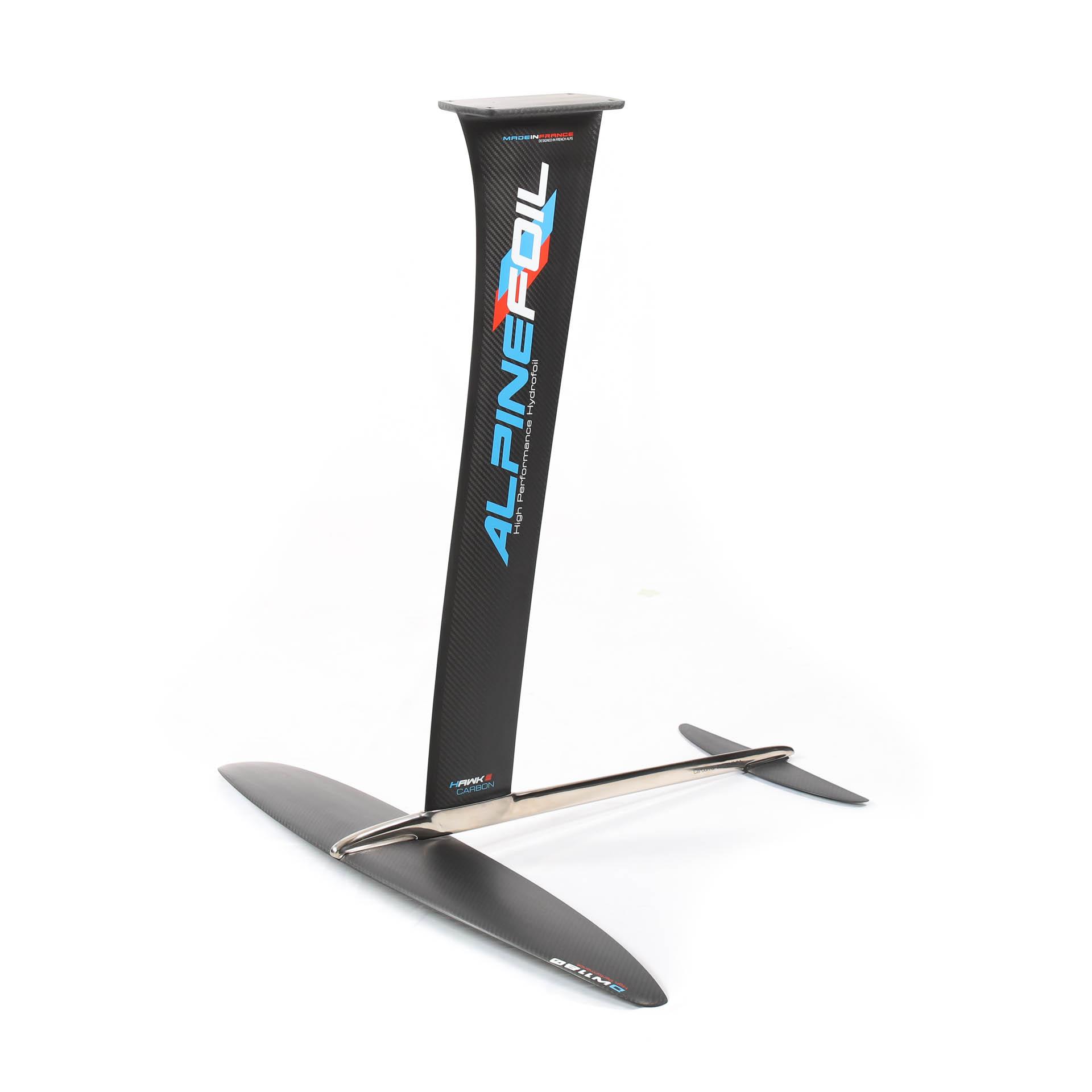

Wingfoil HAWK V3 carbon 86

Wingfoil AlpineFoil Hawk V3 Carbon HM (High Modulus) 86 cm, US Rail-compatible Plate + fuselage + wing + stabilizer
Level: Intermediate to Expert

Appeler
From Monday to Thursday: 8 AM - 12 PM, 2 PM - 7 PM. Friday: 8 AM - 12 PM

Contact Devis

Appeler Mobile

Availability: En stock, livraison rapide

2 199.00€  inc. tax 2 099.00€ inc. tax

reduction of 100.00€

Wingfoil HAWK V3 carbon 86

Stabilizer
  • Condition : new

ALPINE BOARD SURF SURFOIL FOIL supfoil wakefoil wingfoil CARBONE

Review of the new Wingfoil HAWK V3

TEST ALPINE FOIL 860 RSX (AR13) / Mat HM 78 et DK1240

TEST ALPINE FOIL RS-600 / STAB HA 165 / MAT HAWK V3

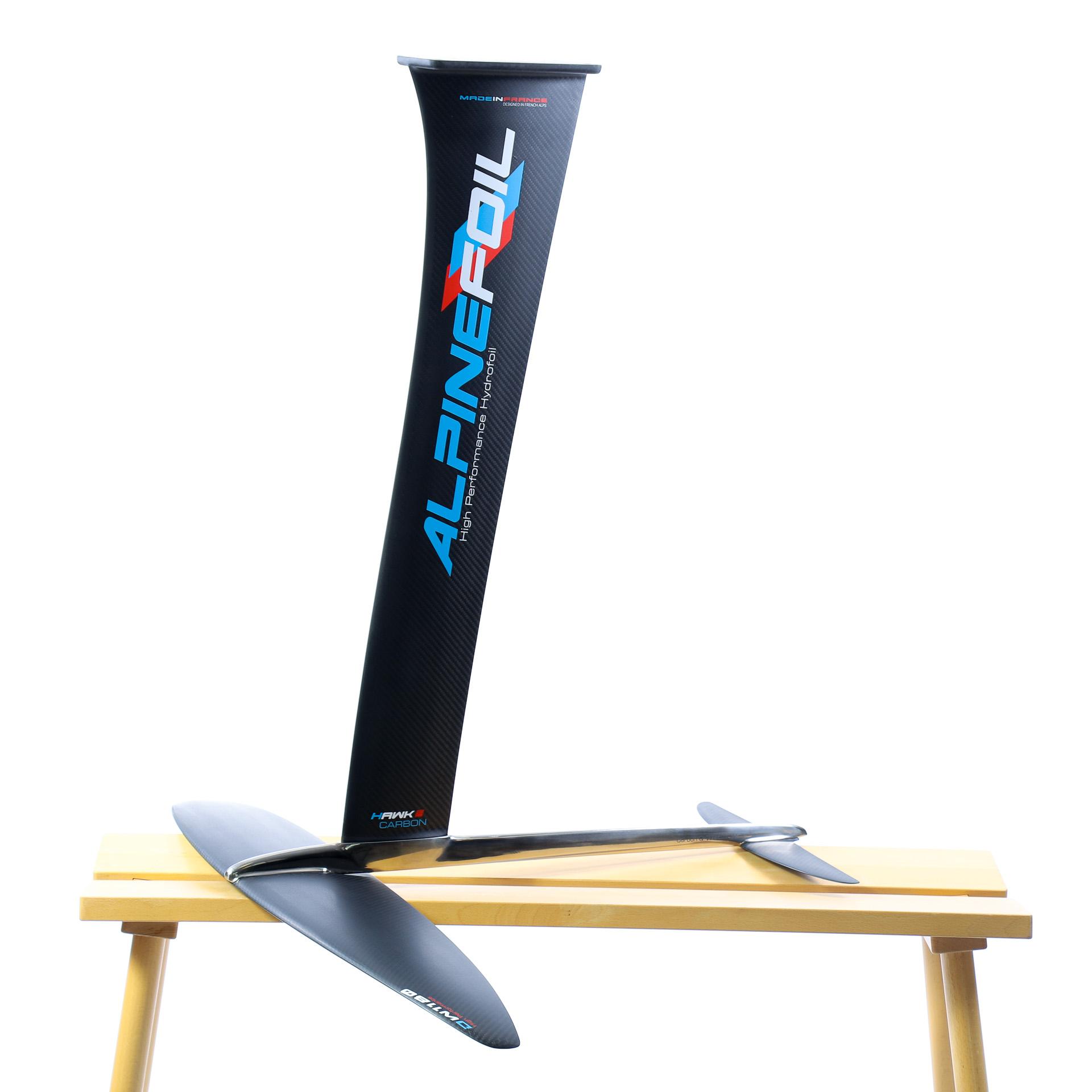

Foil Alpinefoil Wingfoil Hawk V3 - 86 cm (2024)

Main Features:

  • Mast Length: 86 cm, also available in 78 cm and 95 cm.
  • Thickness: 14 mm in the flow zone
  • Hydro Profile: HAWK V3
  • Material: Available in two carbon options:
    • HR High Resistance (identifiable by White/Orange sticker)
    • HM High Modulus (identifiable by Blue/Red/White sticker and UD High Modulus carbon band along the leading edge)
      38% increased stiffness between HR and HM versions, as measured on a test bench
  • Monobloc Continuous Fiber Plate: Compatible with US Rails with standard spacing for easy installation
    • No fiber breaks between plate and mast
    • No bonding between housing and mast
    • No fiber break at the top of the plate

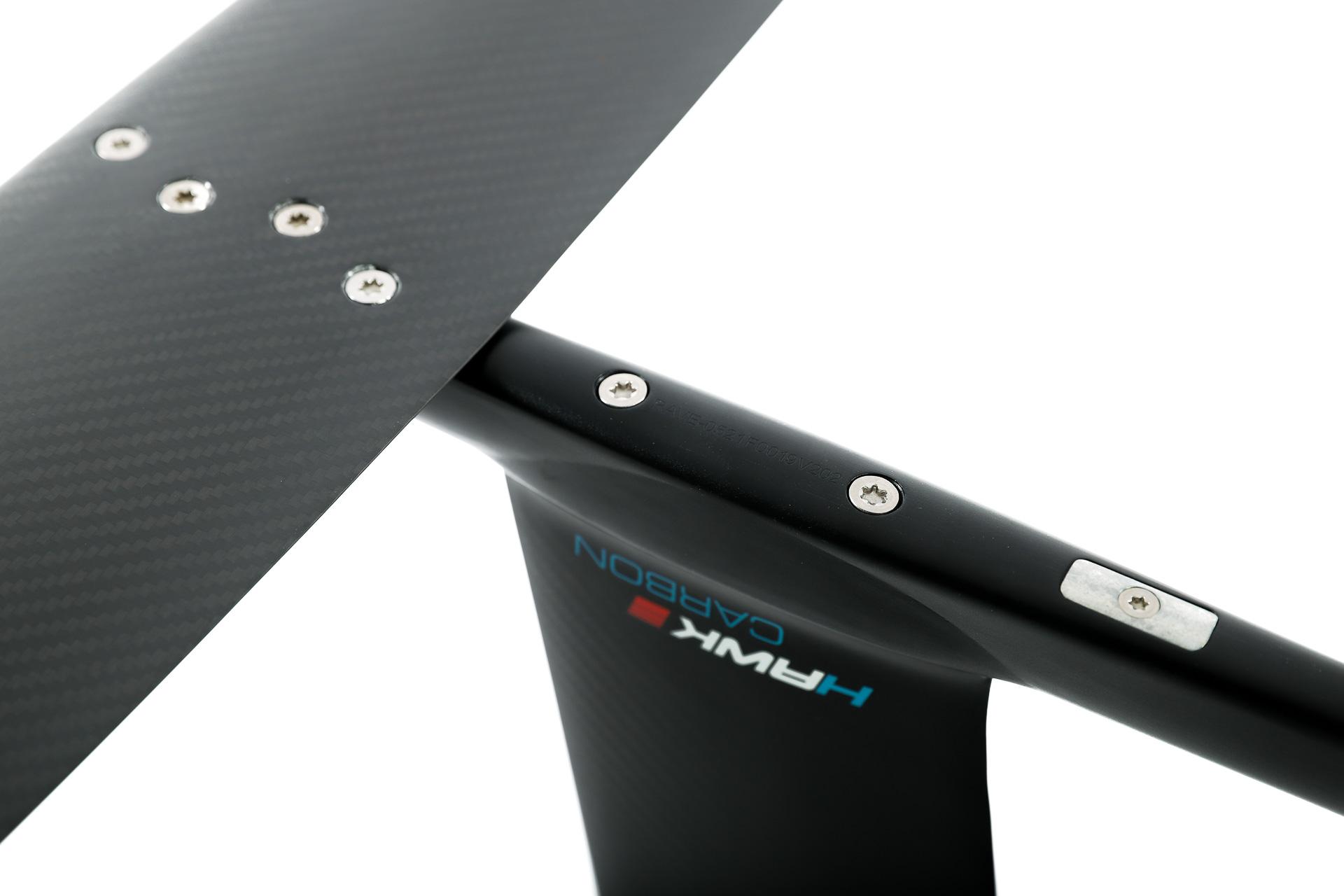

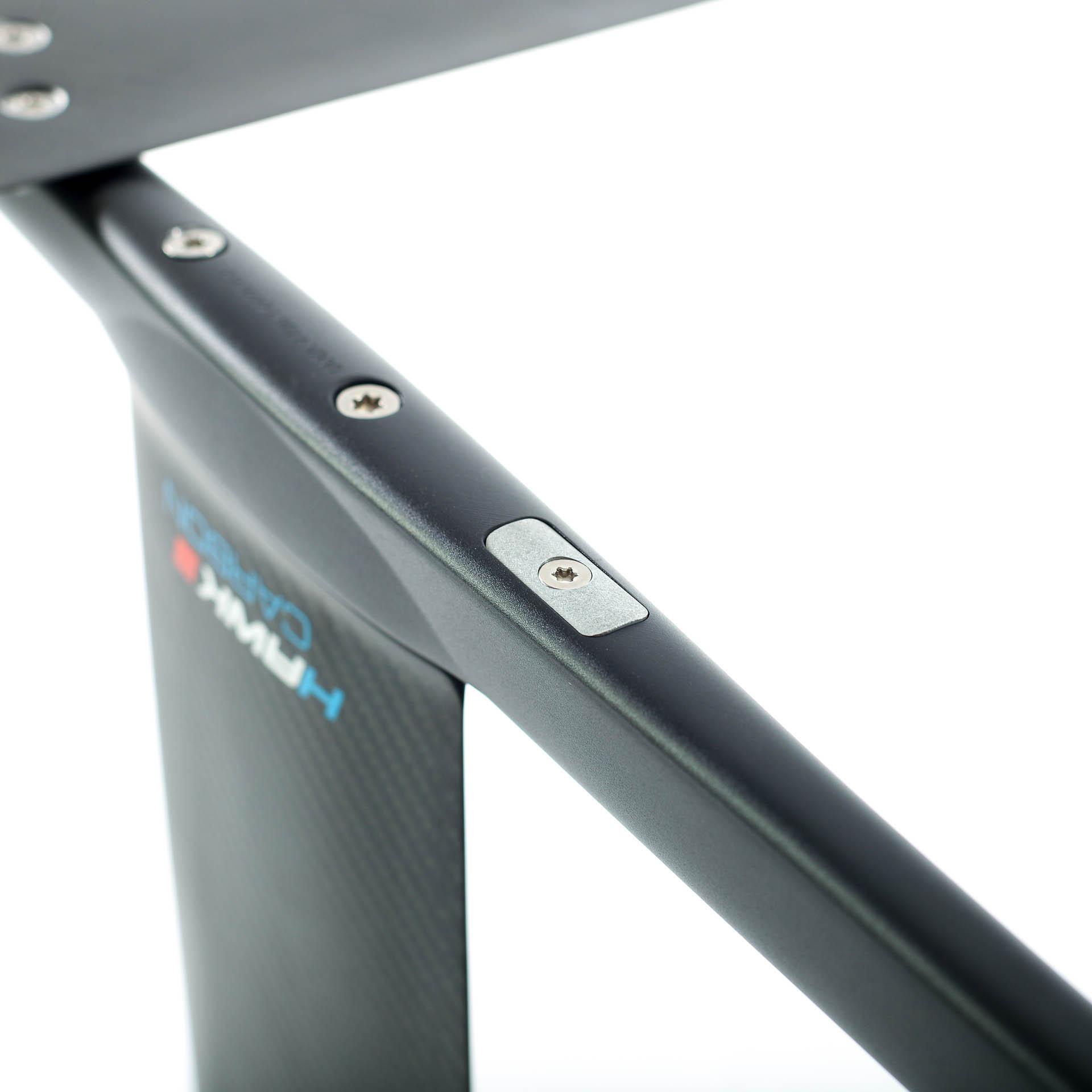

  • Fuselage: Machined in aviation-grade aluminum with sacrificial anode for enhanced corrosion resistance (inspired by marine applications) or titanium fuselage option
  • Compatibility: Fits all Alpinefoil wings since 2010
  • Wide selection of Wingfoil wings. Optimized for DW and RS wings
  • Compatible with Kite Foil/Surf foil/SUP foil/Foil Pumping/Dockstart/WakeFoil
  • Made in France (in the Alps since 2007)
Wingfoil alpinefoil mat hawk 95 hm 0198

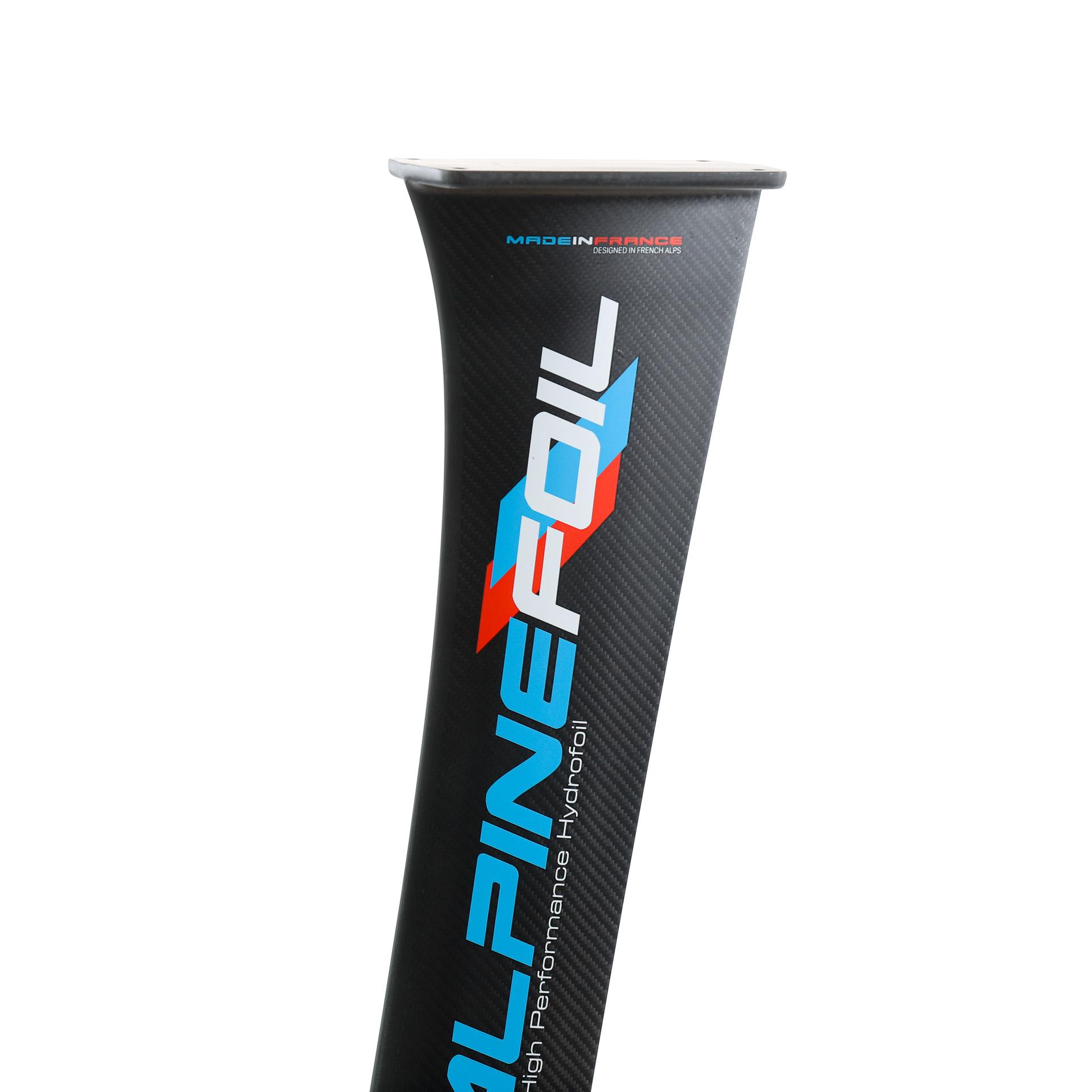

Alpinefoil MCF (Monobloc Continuous Carbon Fiber) Technology:

  • The mast has a “4-Hole Plate” housing integrated directly within the mast fibers, making it lighter and stiffer than a standard mast with a glued-on plate.

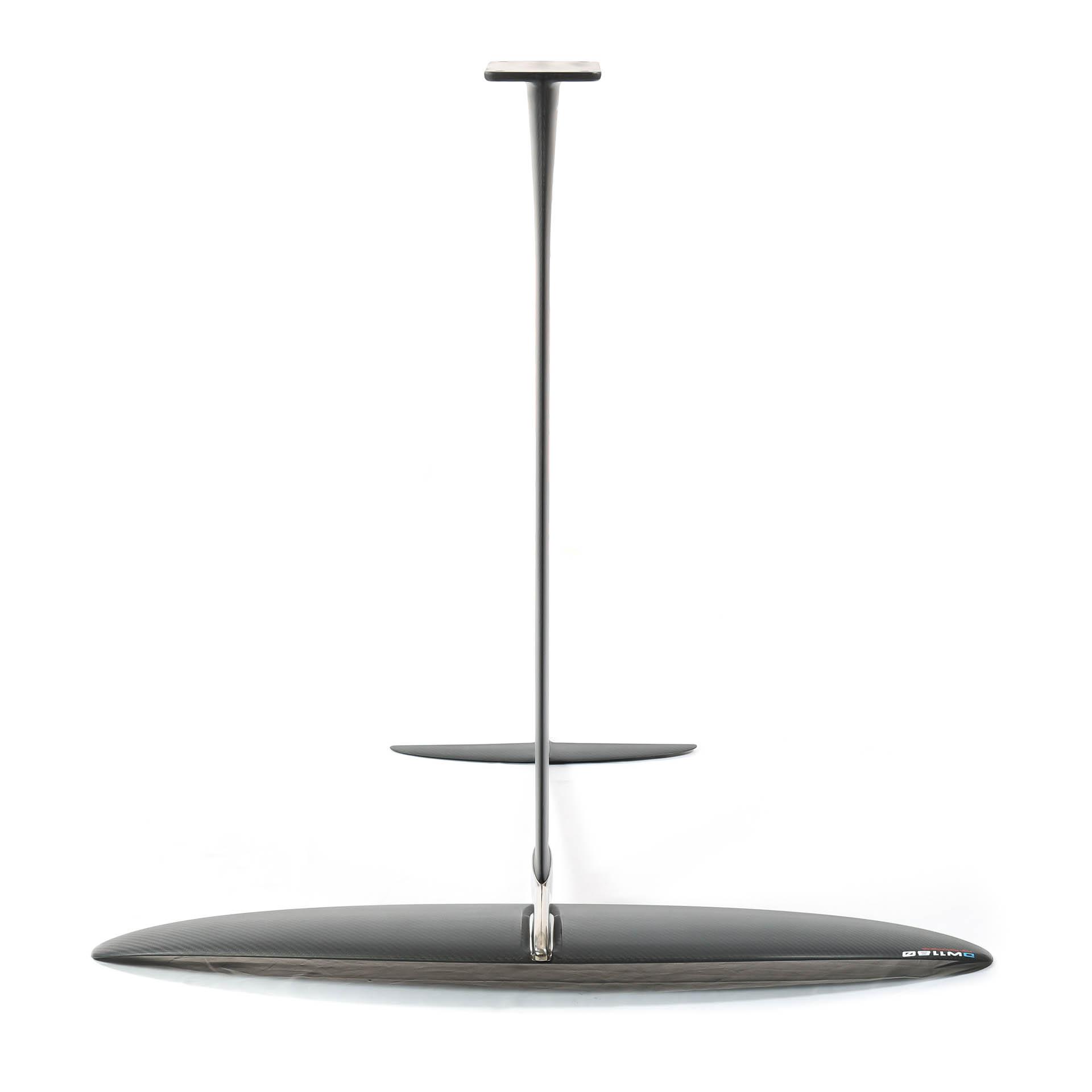

  • S-Shape AlpineFoil Patent: The S-shaped anti-ventilation system advances the mast on the fuselage, preventing ventilation or stalling regardless of speed.
  • Advanced Fixing Point: The mast is positioned further forward on the fuselage, offering a more intuitive and natural turn initiation. When the foil begins a turn, it follows the curve naturally without pilot input, similar to the way a parabolic ski turns compared to a straight ski.

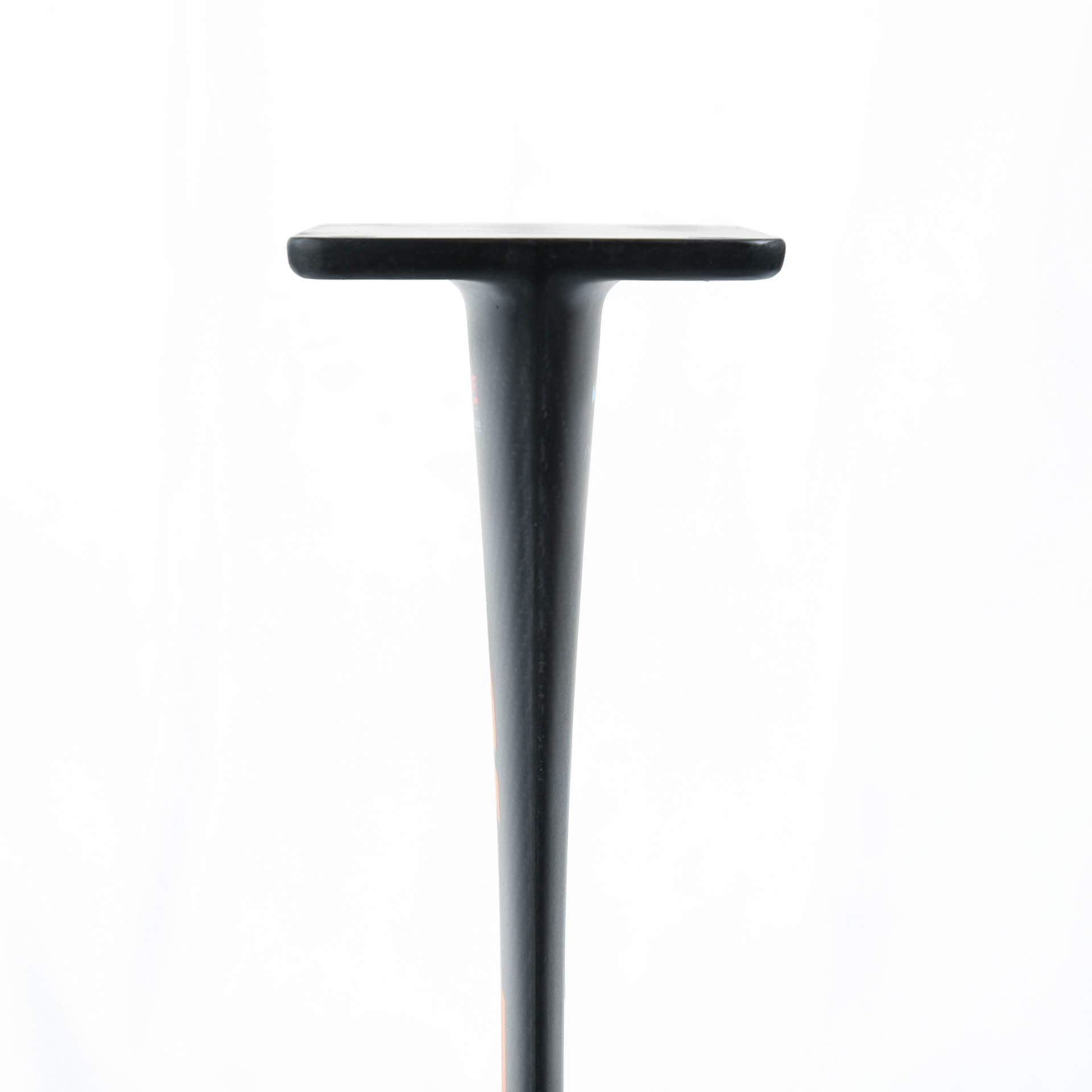

  • 3D Shape: The mast shape evolves along its entire length, with greater thickness near the housing for increased rigidity, while remaining slimmer (14 mm) near the fuselage for improved glide without compromising rigidity.

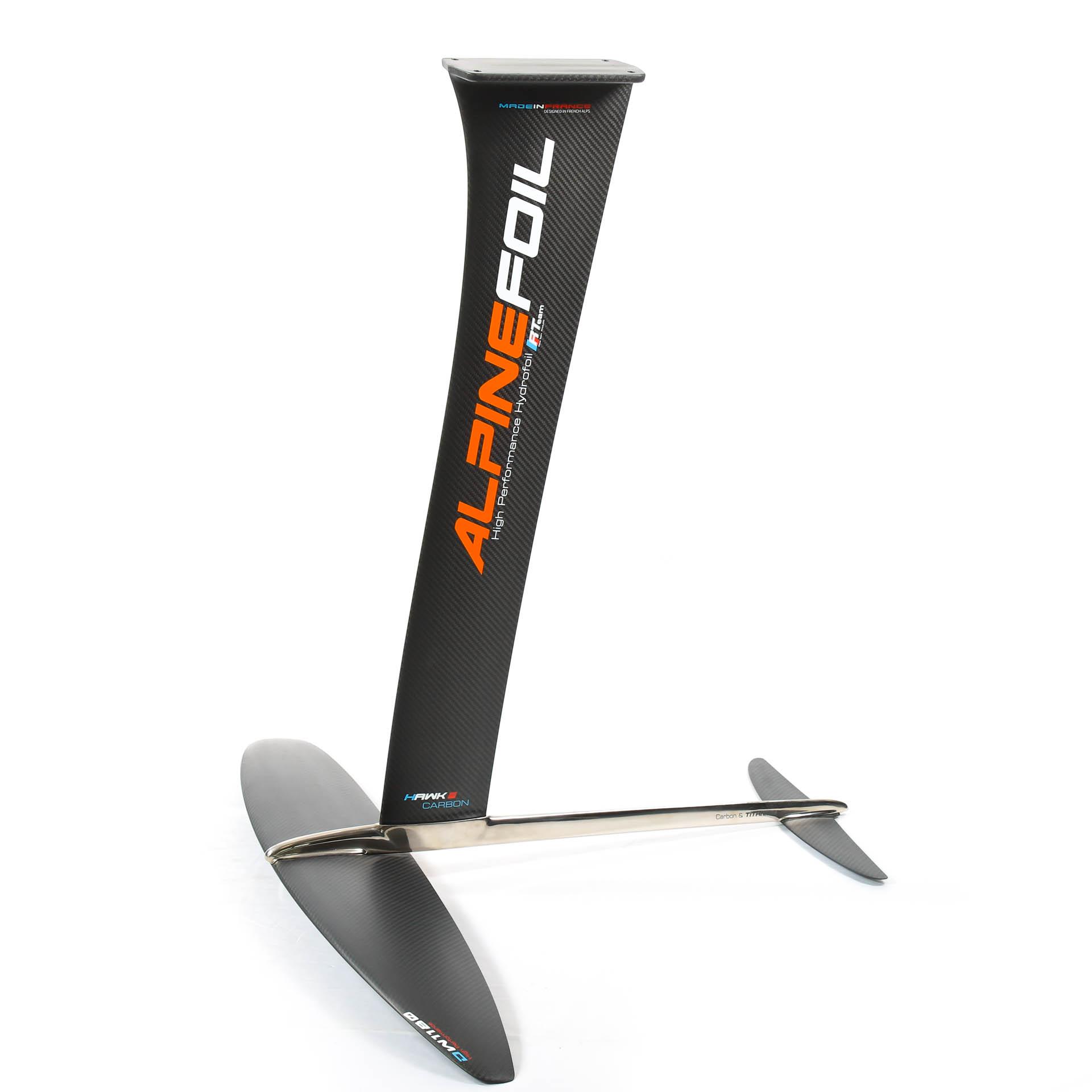

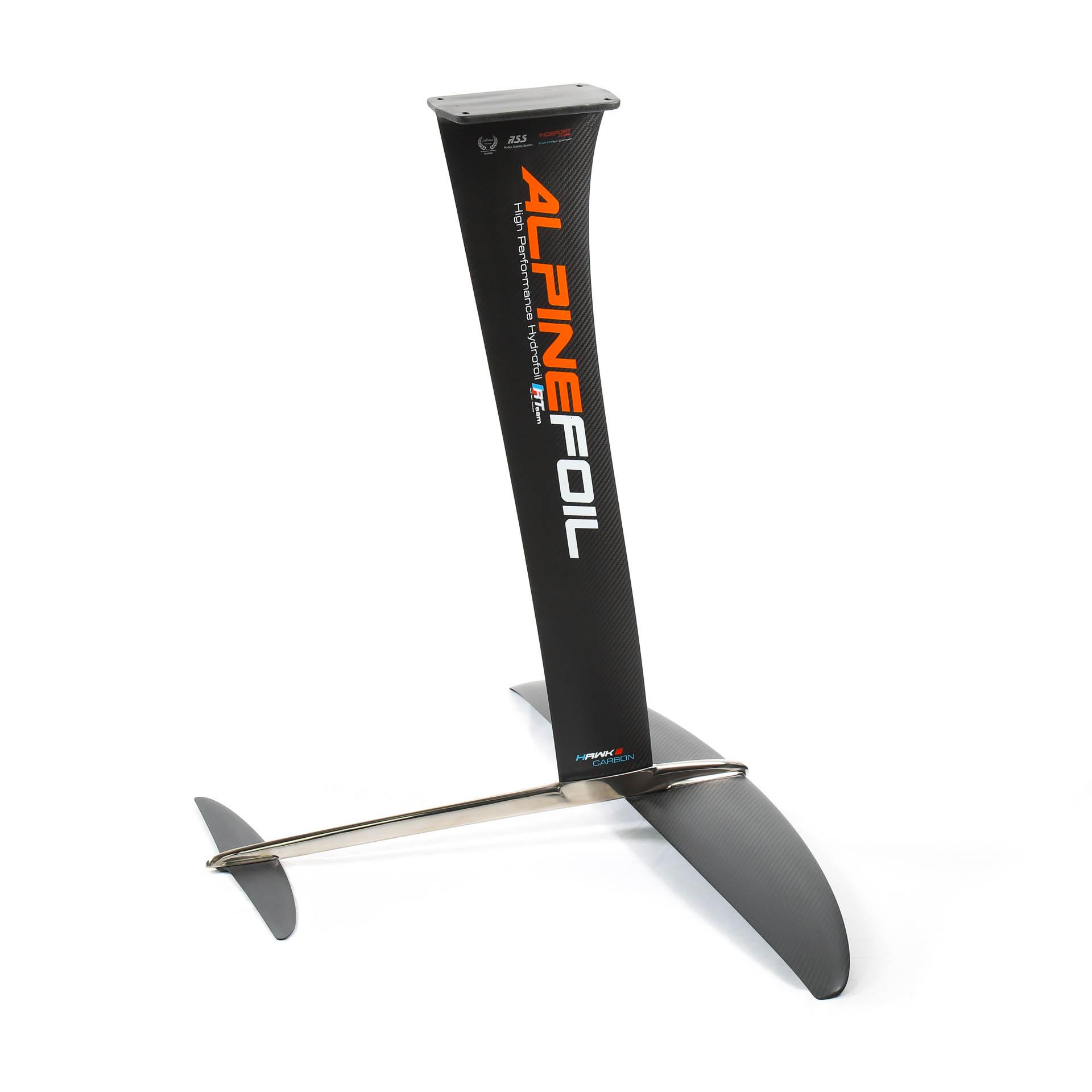

Wingfoil alpinefoil hawk v3 9099

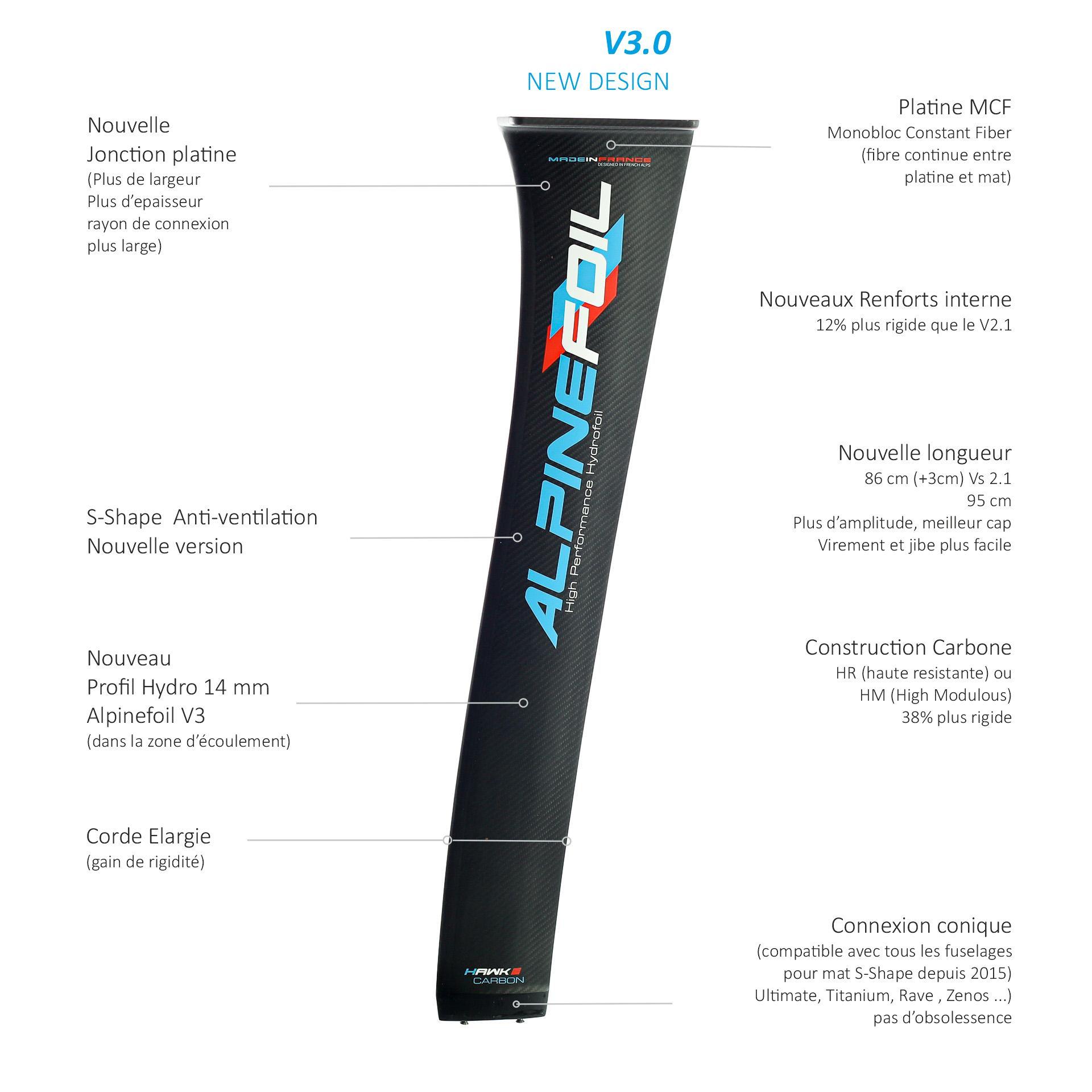

Hawk v3 vs v2 3

The differences between the Hawk V3 and Hawk 2.1 wingfoils

  • New Profile: The V3 adopts a new generation profile, which significantly reduces drag and increases rigidity in torsion and flexion. The V3 HR is 12% stiffer than the V2.1 HR.
  • Improved Plate-to-Mast Junction: The connection between the plate and the mast is thicker and wider, with a larger connection radius.
  • New Fiber Layering and Draping Plan: An updated fiber layout enhances structural performance.
  • Redesigned Outline and Profile Chord: The V3 has a broader profile chord, offering better upwind performance, higher speed, and more stability at high speeds.
  • Enhanced S-Shape: This refined design improves control and foil stability.
  • Available Lengths: 86 cm and 95 cm, with the extra 3 cm providing a noticeable difference in handling and control.

These updates together provide the V3 with better control, speed, and stability, especially for advanced maneuvers.

Conclusion

Numerous changes have been made to the new Hawk V3, making it easier, faster and better performing.
Whether you're a Wingfoil or Kitefoil enthusiast, the Hawk V3 is designed to give you an exceptional sailing experience!

Fuselage2 hawk v3 vs v2

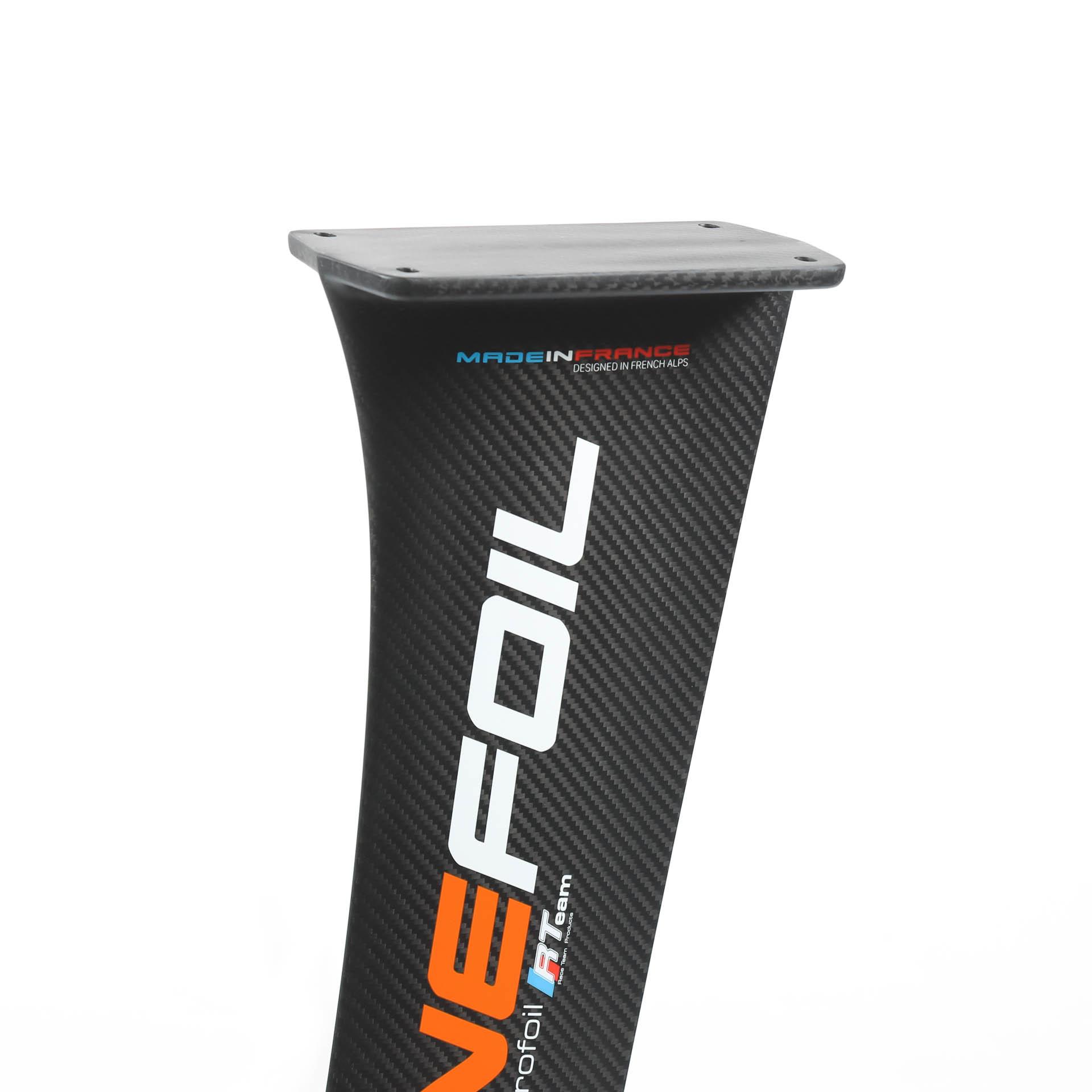

Wingfoil alpinefoil hawk v3 9107

Wingfoil alpinefoil mat hawk 95 hm 9954
Wingfoil alpinefoil hawk v2 1 hm 0026

Front wings for Wingfoil

  • DW 1680
    Type: MHA (Moderate High Aspect)
    Wingspan: 109 cm / Surface Area: 1680 cm2
    Wind range: Minimum 8-10 knots, Maximum 25-30 knots
    Features: Excellent glide. Super low-end range. Very good speed and excellent upwind capability.
    Suitable for: Wingfoiling in super light wind. Downwind runs. Surfing mini waves and small swell. Surf foil, SUP Foil, foil pumping, prone foiling.
    Rider level: Beginner / Advanced / Expert



  • DW 1370
    Type: HA (High Aspect)
    Wingspan: 109 cm / Surface Area: 1370 cm2
    Wind range: Minimum 10-11 knots, Maximum 25-30 knots
    Features: Exceptional glide. Excellent low-end range. Very good speed and excellent upwind capability.
    Suitable for: Wingfoiling in light to medium winds. Downwind runs. Surfing mini waves and small swell. Surf foil, SUP Foil, foil pumping, prone foiling.
    Rider level: Advanced / Expert



  • DW 980
    Type:  HA (High Aspect)
    Wingspan: 93 cm / Surface Area: 980 cm2
    Wind range: Minimum 13-14 knots, Maximum 30-45 knots
    Features: Exceptional glide, phenomenal flow. Strong low-end range for its size. Excellent speed and upwind capability.
    Suitable for: Wingfoiling in medium to high winds. Downwind runs. Wave surfing, and small swell conditions. Surf foil, SUP Foil, foil pumping, prone foiling.
    Rider level: Advanced / Expert



  • DW 750
    Type: HA (High Aspect)
    Wingspan: 77 cm / Surface Area: 750 cm2
    Wind range: Minimum 15-16 knots, Maximum 35-40 knots
    Features: Exceptional glide, phenomenal flow. Strong low-end range for its size. Excellent speed and upwind capability.
    Suitable for: Wingfoiling in medium to high winds. Downwind runs. Wave surfing, and small swell conditions. Surf foil, SUP Foil, foil pumping, prone foiling.
    Rider level: Advanced / Expert

** These values are provided for a rider weighing 75 kg with an advanced skill level, using a 6 m² wing and an 89-liter board. **
